22 août 2019

KTM 790 - problème amortisseurs

Je lis de plus en plus de témoignages (3 à 4 sur AdvRider) de problèmes liés aux suspensions de la KTM 790 R.

MotoMinded "my shock failed last week. waiting on service."

kubcat "Reported failures of the stock R WP xplor suspension? I haven't heard of any failures, so please post links if you are aware of any."

ShaftEd "Same here. 790r blew out shock last weekend. 2k miles on bike. Waiting to hear about warranty replacement. If new shock backorderd will see about rebuild rather than wait."

"Another member from here in SA also had his rear shock blow out. Seems to be becoming a bit common."

A suivre. Pas top pour une machine de type R avec des suspensions spécialement développées pour l'off-road.


21 août 2019

KTM 790 - moto de l'année pour Rider Magazine

https://ridermagazine.com/2019/08/14/rider-magazines-2019-motorcycle-of-the-year/

Our choice, as always, goes to a machine that succeeds best at its intent and could be considered a game-changer in its category. We celebrate all new motorcycles, as they each represent the opportunity to get more people on two wheels, experiencing this great adventure we know and love. Congratulations to all the manufacturers, and thank you for keeping our passion alive!

And the winner is….

KTM 790 Adventure

It’s no secret that adventure bikes are exploding in popularity, as riders discover the utility and versatility of their combination of upright seating position, decent ground clearance and suspension travel, wind protection, the ability to carry luggage and, to varying degrees, venture off-pavement. ADV bikes have been getting increasingly bloated, however, bigger, more powerful—and heavier—each model year. Hard-core ADV-ers have been clamoring for years, begging for a bike that returns adventure riding to its truly adventurous roots. Something lightweight and trail-capable, yet with enough elemental protection, power and luggage capacity to comfortably travel cross-country, and modern fuel injection and electronic rider aids wouldn’t hurt.

At long last, KTM answered the call, and what an answer it is. The 790 Adventure and its even more off-road-oriented R sibling manage to check all the boxes: light weight at a claimed 417 pounds dry, a state-of-the-art 799cc liquid-cooled, DOHC LC8 parallel twin that produces a claimed 95 horsepower and 65.6 lb-ft of torque delivered low in the rev range for optimum grunt, and spoked tubeless wheels in 21-inch front/18-inch rear sizes. The standard, more touring-oriented model has a still-respectable 7.9 inches of travel from its WP Apex suspension and a fairly accessible, adjustable seat height of 32.7/33.5 inches. Multiple riding modes (Street, Offroad and Rain) adjust throttle response and lean-angle sensitive Motorcycle Traction Control (MTC) settings, and power reaches the rear wheel by way of an assist-and-slipper clutch, a 6-speed transmission and chain final drive. The more off-road-oriented R model gets a Rally ride mode, fully adjustable WP Xplor suspension with 9.4 inches of travel and a 34.6-inch rally-style seat.

A defining characteristic of the 790 Adventure is its rally racer-inspired, 5.3-gallon horseshoe-shaped gas tank, which keeps the bike’s center of gravity low, creates less bulk between the knees for stand-up riding and makes air filter, battery and fuse access easy, plus it does double-duty as engine protection in case of a tip-over.

On paper the 790 Adventure is impressive, and riding it is confirmation; the seat is flat, spacious and comfortable, the wide handlebar is six-position adjustable and the long-travel suspension soaks up road irregularities at high and low speeds. Bosch 9.1 MP cornering ABS backs up powerful brakes and many useful features are standard, such as an aluminum skid plate, a 12V dash socket and an underseat USB port. Cruise control, a centerstand, a quickshifter, heated grips and TPMS are optional.

At long last, the empty slot between a street-legal enduro and an open-class ADV tourer has been filled, and that sound you hear is the cheering of all those riders looking for a bike to rule both mountain and highway.

KTM 790 - reçue ce matin ...

J'ai bien reçu ma 790 ... en format porte-clé.

Pour la vraie 790, il faudra attendre encore quelques mois en raison d'un projet en cours


20 août 2019

KTM 790 - accessoires Outback

Je reviens sur les accessoires d'Outback. Pourquoi? Parce que pour l'instant ce sont les seuls qui soient les plus complets et les plus sûrs.

Les prix sont aussi intéressants. Pas de date de livraison

€ 157 pour le sabot

€ 157 pour le crash bar

€ 289 pour la combinaison sabot et crash bar

€ 136 pour la béquille centrale

€ 200 pour les supports valises

Intéressant de voir le support pour les phares auxiliaires

J'espère que les prix ne changeront pas quand les accessoires seront disponibles


















12 août 2019

KTM 790 - accessoires Touratech

Une présentation de Touratech. En allemand avec les sous-titres en anglais


Bonne puissance, poids faible, sensation de petite moto, position confortable.
Bien pour les longues distances et en off-road. La répartition du poids est excellente.
Il a besoin de rehausse de guidon.

11 août 2019

KTM 790 - Givi support GPS

Une solution originale de Givi pour les GPS.

Une des moins chère pour l'instant.

A quand une bulle Givi pour la 790?


KTM 790 - comment éviter d'avoir la clé pour fermer le bouchon d'essence

Une modification intéressante surtout si on installe un amortisseur de direction.

En effet, le bouchon de réservoir ne permet pas de se fermer sans la clé dans la serrure. Comme le bouchon s'ouvre vers l'avant il y a un conflit avec l'amortisseur de direction.

Incroyable que KTM n'y ai pas pensé. Surtout qu'ils ont préparé le cadre pour la pose d'un amortisseur de direction ...

De AdvRonski sur AdvRider

You need to take out the 2 Phillips screws to remove the cover over the latch pawl, and the spring and pawl will probably go flying across the floor, just as mine did here.




When you have retrieved the pawl and spring, take the pawl and mark the black area, which will have to be removed to allow the pawl to move when the key is removed.


I started by drilling in the center of the black area, just to the floor of the cavity, then finished the process with a die grinder and a barrel-shaped bit.


The easiest way to re-assemble this for me, was to hold the pawl and spring in place with my left hand, slide the cover in place with my right hand, then install the screws with my remaining hand. YMMV.

Now, after opening the gas cap with the key, I can put the key back in the ignition lock, then just push the gas cap closed when I'm done refueling.

For extra credit, I also took the lock cylinder out, and removed the tumblers, just to prevent any issues with a sticky lock down the road. That is a little more involved, and not something I would necessarily recommend, as it would be pretty easy to screw it up and end up having to buy a new gas cap assembly.

10 août 2019

KTM 790 - accessoires sabot chappel

Un nouveau sabot qui utilise le support des reposes-pieds comme base.

Même idée que les autres sabots qui doivent arriver bientôt sur le marché






 Ce qui fait toute la différence



Une construction sérieuse

5mm thickness



The original is 1.8mm! Mounted on small rubbers with the consistency of pencil erasers....



5083 aluminium alloy



“Aluminium 5083 is known for exceptional performance in extreme environments. 5083 is highly resistant to attack by both seawater and industrial chemical environments. Alloy 5083 also retains exceptional strength after welding. It has the highest strength of the non-heat treatable alloys”.



100% independent of engine



No connection to the crankcases whatsoever. Approx 10mm clearance to allow for deformation from
severe impact, and good airflow.




Light weight



The total weight gain is only 2.35kg (5.25 lbs) over the OEM setup—and this is both very low and very central.



6mm steel hanger bracket



Designed to prevent rotation (and distortion of the plate) following a hard impact.
Also provides extra strength by bracing between footpeg brackets. M8 tapped and black Powder-coated (no fiddly hex nuts).




TIG-welded both sides



Using 5356 filler, which can later be anodised if required.



Smooth underside



Countersunk fixings, and no slots/holes to catch on branches etc.



Compatible with OEM tank protectors



No need for ‘scaffolding’ (crash-bars), both increasing the width of the tank and adding weight.



One tool required for removal/installation



Easily removed (with or without tank protectors) using only a 5mm hex/allen key. A2 stainless steel fixings
provided. The lower tank protector connection point is also threaded to remove the need for a 10mm
spanner when removing the tank protectors.




Vapour-blasted finish



Natural corrosion-resistant 5083 alloy. No powder coating to come off. Finish can be restored by sanding
and/or wire brushing.




Extensive ventilation



Logo and hexagonal holes are not just for looks!



Integrated ‘crap flap’



No need for an aftermarket ‘crap flap’, as is necessary with the OEM plate to prevent the void containing the exhaust and oil cooler getting full of mud or flammable material.



Made and in the UK



Proudly designed and made in Great Britain .
Due to the unusual arrangement of fuel tanks (and their protectors) etc on the 790, there is considerably more involved with these than the Powerparts 1#90 plates. More material, a lot more laser cutting, and 52% more welding—which unfortunately but inevitably does make them more costly to produce.




Instructions



Full colour installation instructions available for download.



Cost



£287.50 + VAT (@ 20%).
VAT is currently chargeable only to:
- UK businesses and individualsNon-UK EU individuals (but not businesses which provide a valid VAT number)No VAT is chargeable when dispatched to non-EU countries (businesses and individuals).



Shipping/Carriage



Please email for a quote.



Availability



First batch anticipated for dispatch late August ’19.



Enquiries and Orders



By email at this time please.

8 août 2019

KTM 790 - accessoire protection réservoir

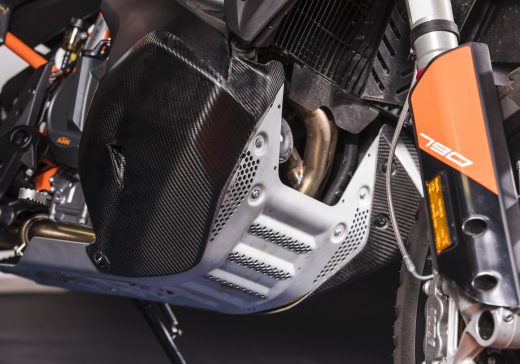

La solution de Rade Garage pour la protection du réservoir


7 couches de carbon et kevlar - 279€

https://www.radegarage.com/parts/ktm-790-tank-covers/




KTM 790 - vidéo 5 choses à savoir avant d'acheter



1. smooth engine and shifter
2. little windscreen is useless (R)
3. Engine is more grunty at the low end (than the Duke)
4. Seet high (R) 880mm - 830mm for the S
5. Handles absolutely beautifully

7 août 2019

KTM 790 - problème repose-pied photos

Maintenant que le propriétaire de la moto a pu faire changer son carter, il a partagé quelque photos.

Ses mots concernant la cause:

"Riding in Portugal - somewhere hit Foot peg hanger which led to bottom bolt breaking case where it's attached to engine case."





KTM 790 - test Mototrek

Un bon test de la version normale.


4 août 2019

KTM 790 - accessoire bulle Rade Garage

Un peu plus d'infos sous forme d'images en Norvège - vers Bergen.

L'idée est intéressante. A voir si la hauteur sera suffisante.






Comparaison avec la bulle KTM version R. Je ne trouve pas que la hauteur est beaucoup plus grande. Déception? L'idée d'une bulle Givi me semble tout autant protecteur voir plus et a l'avantage du réglage en hauteur. A suivre




Givi sur bulle 790 R


2 août 2019

KTM 790 - accessoire Outback

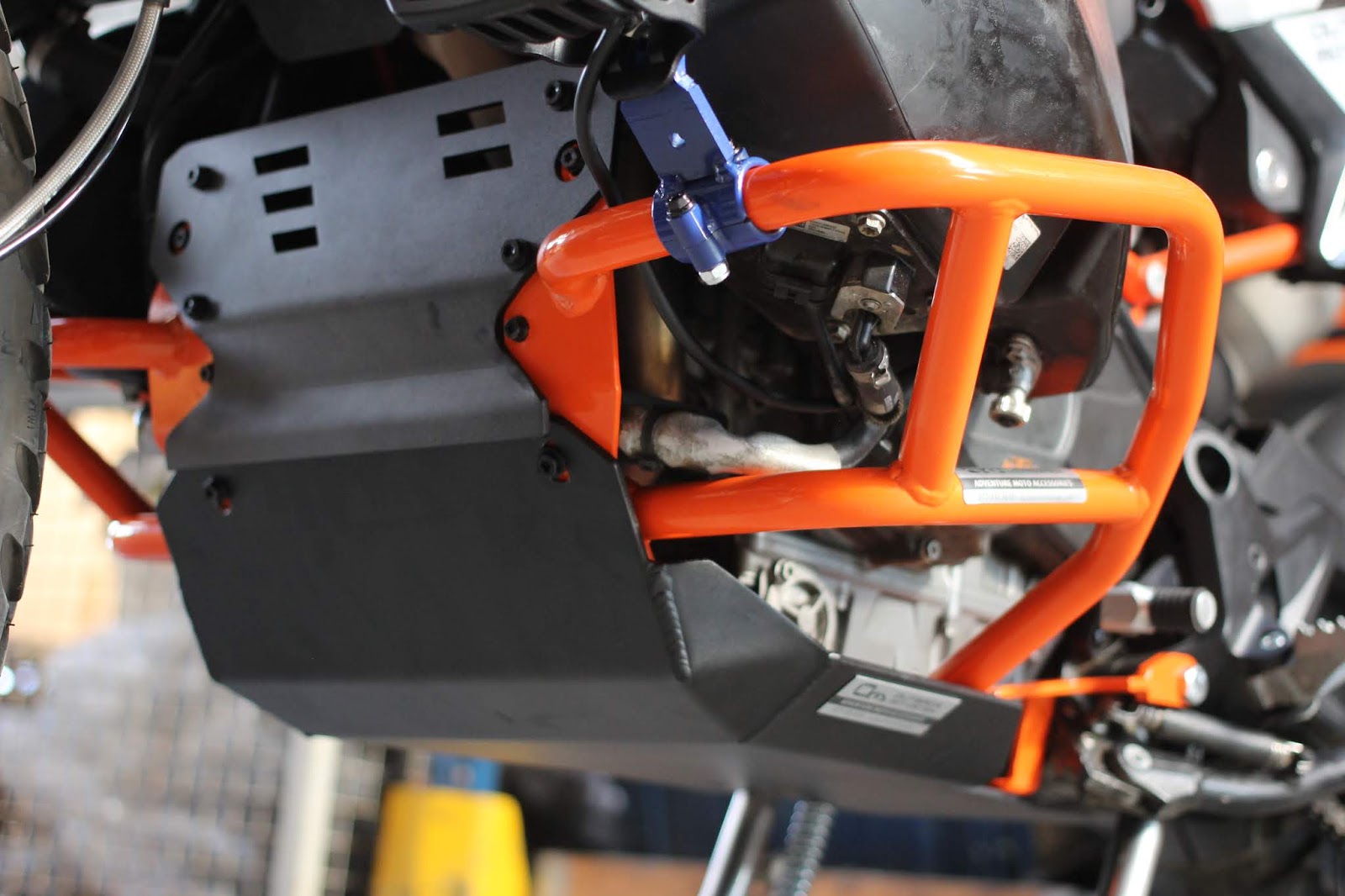

Quelques nouvelles de la solution Outback pour protéger la 790

Suite à un échange d'emails

- le prix pour les crash-bars devrait être au niveau des crash-bars hauts de la 1090 (178€)
- le prix pour le sabot devrait être plus bas que celui de la 1090 (170€)
- couleur: orange ou noir pour les crash-bars. Noir pour le sabot
- 4mm d'épaisseur
- compatible avec une béquille centrale - la leur? celle de KTM?
- fabrication fin du mois d'août

Une solution très intéressante ...

https://europe.outbackmotortek.com/product-category/ktm-790-r-s/
